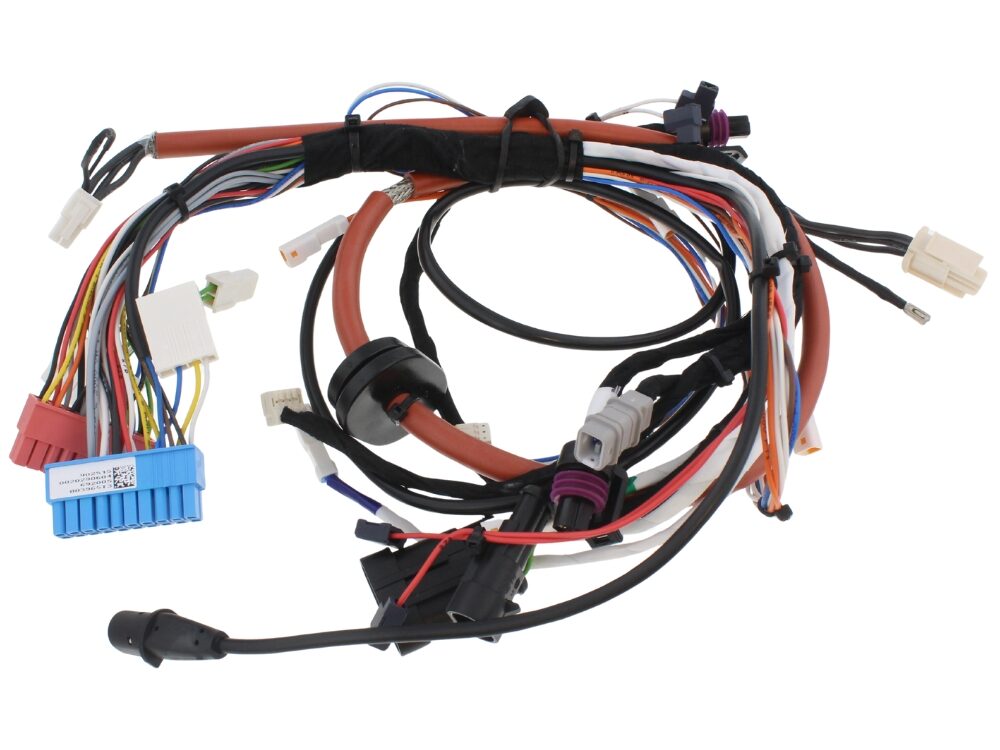

Vaillant Cable Wiring Harness 10034936
24V cable wiring harness, part number 10034936, for Vaillant Arotherm PLUS /6 heat pumps.
At a glance
- Appliance family: Arotherm PLUS /6
- Also known as 1391514
£156.35
£130.29 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 10034936 is a 24V cable wiring harness used on Arotherm PLUS /6 air source heat pumps. It carries low-voltage control and signal connections between components within the appliance. The harness is supplied as a complete assembly with its fitted connectors.
Signs this part needs replacing
- Cracked, chafed or heat-damaged insulation along the harness run
- Exposed or broken conductors at the connector ends
- Corroded, discoloured or loose terminals in the plug bodies
- Intermittent control faults or communication errors that clear when the harness is moved
- No continuity through one or more cores when tested
Before you order
- Check the model and variant on the appliance data badge against the fit list above
- Confirm the existing harness carries the part number 10034936
- Compare the connector bodies and pin count on the old harness with the replacement
- Inspect the mating sockets on the appliance for damage before fitting a new harness
Compliance
| Alternative numbers | 1391514 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT aroTHERM PLUS /6 VWL 65/6 A 230V S2 R2 (2023) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 75/6 A 230V S2 (2020-2023) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 75/6 A 230V S2 R2 (2023) | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
