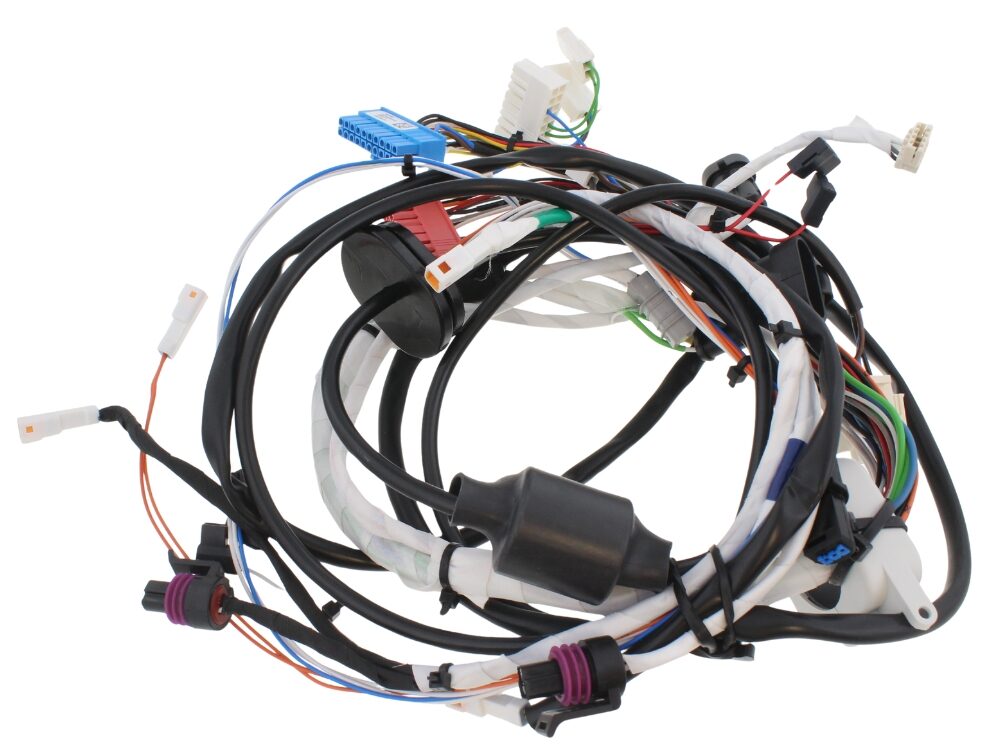

Vaillant Cable Wiring Harness 24V 10034933
24V cable wiring harness (part 10034933) for Vaillant Arotherm PLUS /6 heat pump units.
At a glance
- Appliance family: Arotherm PLUS /6
- Also known as 1391500
£131.83
£109.86 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 10034933 is a 24V cable wiring harness used in Arotherm PLUS /6 heat pump appliances. It carries low-voltage control and signal connections within the unit. The harness is supplied as a complete assembly with its fitted connectors.
Signs this part needs replacing
- Visible damage to the cable insulation, such as cuts, chafing or heat marks
- Broken, pulled or corroded conductors at the plug or terminal ends
- Loose or poor contact at the harness connectors
- Intermittent faults or error codes traced to the low-voltage control circuit
- Moisture ingress or contamination inside the connectors
Before you order
- Confirm the appliance model and build reference against the fitment list above
- Check the part number 10034933 against the manufacturer's parts list for your unit
- Inspect the existing harness routing and connector type before removal
- Confirm the 24V rating matches the circuit being repaired
Compliance
| Alternative numbers | 1391500 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT aroTHERM PLUS /6 VWL 105/6 A 230V S2 (2020-2021) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 105/6 A 230V S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 105/6 A S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 125/6 A 230V S2 (2020-2021) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 125/6 A 230V S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 125/6 A S2 R1 (2022) | — | — | — |
