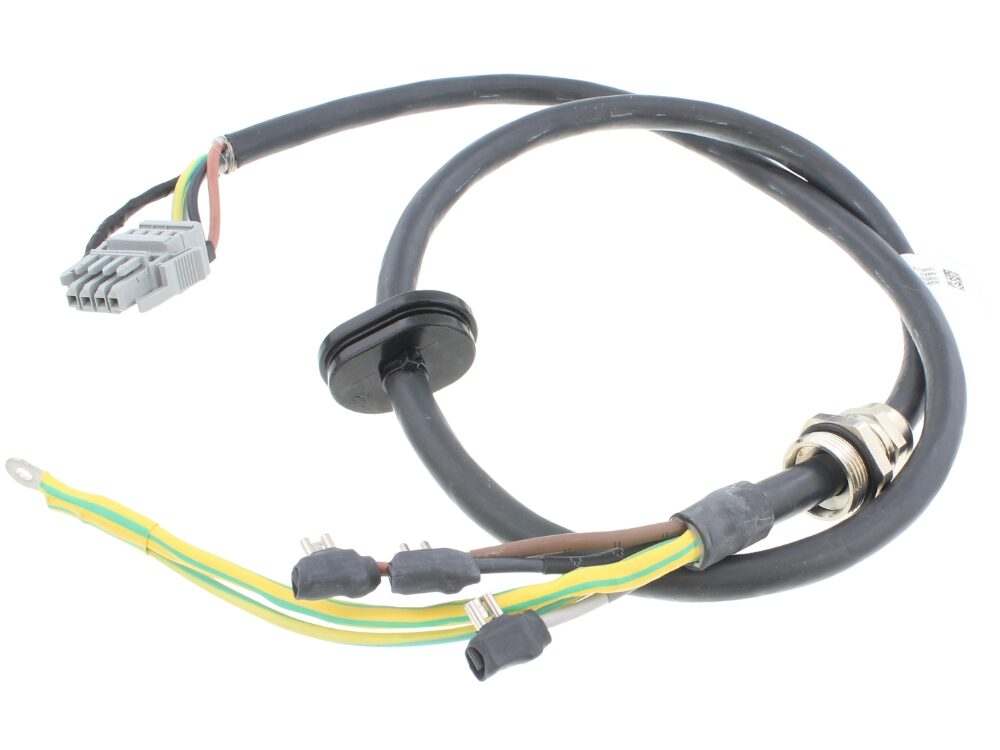

Vaillant Cable Harness Inverter Compressor 10034467
Cable wiring harness for the inverter compressor on Vaillant Arotherm PLUS /6 heat pumps.
At a glance
- Appliance family: Arotherm PLUS /6
- Also known as 1391532
£115.36
£96.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 10034467 is a cable wiring harness for the inverter compressor fitted to Arotherm PLUS /6 air-to-water heat pumps. It carries the electrical connections between the inverter and the compressor, allowing the compressor to be driven and controlled by the inverter module. The harness is supplied as a complete assembly with the connectors required for the circuit.
Signs this part needs replacing
- The heat pump trips the compressor circuit or shows an inverter or compressor fault code.
- Visible damage to the harness insulation, such as chafing, cracking, heat discolouration or rodent damage.
- Loose, corroded or heat-affected terminals at the compressor or inverter end of the harness.
- Intermittent compressor operation that changes when the harness is moved or reseated.
- Continuity or resistance readings outside the expected values on one or more conductors.
Before you order
- Confirm the model and variant on the appliance data badge against the fit list above.
- Check the fault diagnosis points to the harness rather than the inverter or compressor itself.
- Inspect the existing harness connectors and routing so the replacement is fitted the same way.
- Isolate the power supply and follow the manufacturer's instructions before removing any electrical component.
Compliance
| Alternative numbers | 1391532 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT aroTHERM PLUS /6 VWL 105/6 A 230V S2 (2020-2021) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 105/6 A 230V S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 105/6 A S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 125/6 A 230V S2 (2020-2021) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 125/6 A 230V S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 125/6 A S2 R1 (2022) | — | — | — |
