Vaillant Expansion Valve 10033533
Vaillant expansion valve 10033533 for Arotherm PLUS /6 air source heat pump units.
At a glance
- Also known as 1391498
£52.36
£43.63 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

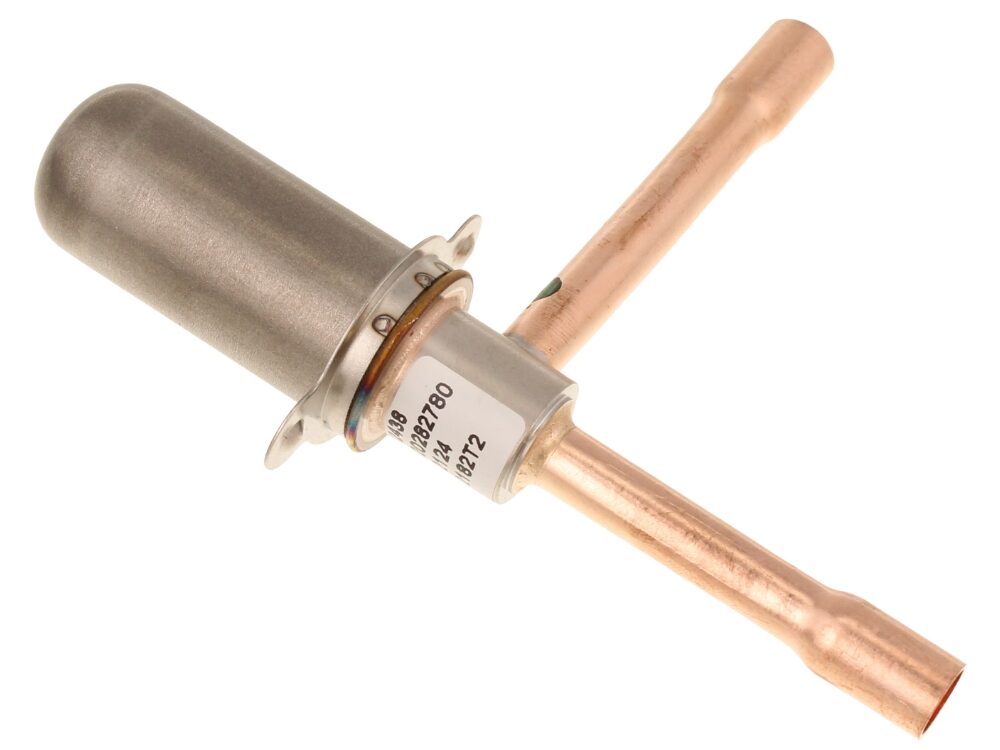

The Vaillant expansion valve, part number 10033533, is a refrigerant circuit component used on Vaillant Arotherm PLUS /6 air source heat pump units. It meters refrigerant flow into the evaporator, controlling the pressure drop across the circuit and the superheat leaving the evaporator. The valve is matched to the Arotherm PLUS /6 platform in the 35 kW and 55 kW 230V S2 variants.
Signs this part needs replacing
- Reduced heating or hot water output from the heat pump despite the compressor running
- Frost or ice forming on the outdoor unit pipework around the valve or distributor
- Erratic or excessive superheat readings, with the compressor running hotter than normal
- Repeated high-pressure or low-pressure faults locking the unit out
- Whistling or hissing from the refrigerant circuit at the valve position
Before you order
- Confirm the unit model and build version (S2, R1 or R2) against the data plate before ordering
- Check the existing valve part number matches 10033533
- Plan for refrigerant recovery, evacuation and recharge, which must be carried out by a suitably qualified F-gas engineer
- Check whether the heat pump is still within its manufacturer warranty period before any work is started
Compliance
| Alternative numbers | 1391498 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT aroTHERM PLUS /6 VWL 35/6 A 230V S2 (2020-2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 35/6 A 230V S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 35/6 A 230V S2 R2 (2023) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 55/6 A 230V S2 (2020-2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 55/6 A 230V S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 55/6 A 230V S2 R2 (2023) | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
