Ravenheat

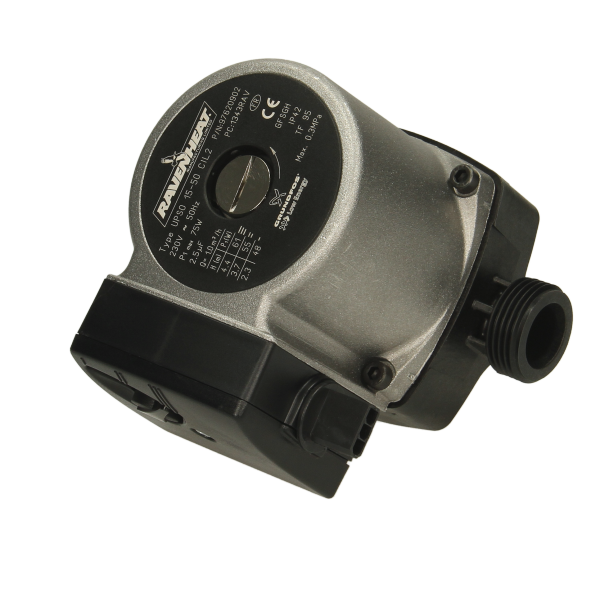

Ravenheat Pump 1 Inch BSP 0009CIR01011/0
At a glance
- Part type: Pump
- Also known as 1841158
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£226.80
£189.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 1 Inch BSP pump, part number 0009CIR01011/0, is a circulation pump used in Ravenheat gas boilers. It moves heated water from the appliance through the heating circuit and back again, so it sits at the centre of the boiler's ability to distribute heat around the system. This pump carries the 1 inch BSP connection and is listed against the CSI 85A and HE 85A families of Ravenheat appliances.
Signs this part needs replacing
- Radiators stay cold or heat unevenly while the boiler is running and calling for heat.
- The pump becomes noisy in use, with humming, grinding or rumbling audible from the casing.
- The appliance overheats or locks out on an overheat condition because water is not being circulated.
- Water weeps from the pump body, the connection or the seal area.
- The pump body runs hot but there is little or no flow through the heating circuit.
Before you order
- Check the appliance GC number and model against the compatibility list before ordering, as the same boiler range can use more than one pump variant.
- Confirm the part number on the existing pump matches 0009CIR01011/0, and note that 0009CIR01011/1 is the previous number for this item.
- Inspect the pump connection and any sealing washers or gaskets at the same time, and replace them if they are compressed or perished.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pumps |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 0009CIR01011/0 |
|---|---|
| Barcode / EAN | 5060022145740 |
| Commodity code | 8413 70 30 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1-BSP-RAVENHEAT-PUMP, 0009CIR01011/1, 1841158 |
| Previous numbers | 0009CIR01011/1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85A LPG | — | — | — | |
| RAVENHEAT CSI 85A NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85A T LPG | — | — | — | |
| RAVENHEAT CSI 85A T NATURAL GAS | — | — | — | |
| RAVENHEAT HE 85A LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT HE 85A NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT HE 85A T LPG | 47-581-24 | 47-581-24 | — | — |
| RAVENHEAT HE 85A T NATURAL GAS | 47-581-20 | 47-581-20 | — | — |
| RAVENHEAT RAVENHEAT CSI 85 | — | — | — | |
| RAVENHEAT RAVENHEAT CSI 85A | — | — | — |
Showing 10 of 34 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 85A LPG, CSI 85A NATURAL GAS, CSI 85A T LPG, CSI 85A T NATURAL GAS
manualmanualRAVENHEAT appliance manual — RSF 100E LPG, RSF 100E NATURAL GAS (GC 47-581-25), RSF 100E T LPG, RSF 100E T NATURAL GAS (GC 47-581-26), RSF 84E LPG, RSF 84E NATURAL GAS (GC 47-581-27), RSF 84E T LPG, RSF 84E T NATURAL GAS (GC 47-581-28)
manualmanualRAVENHEAT appliance manual — RSF 820/20T NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — RSF 82E LPG, RSF 82E NATURAL GAS (GC 47-581-18), RSF 82E T LPG, RSF 82E T NATURAL GAS (GC 47-581-04)
manualNo technical questions yet for this part.
