Ravenheat

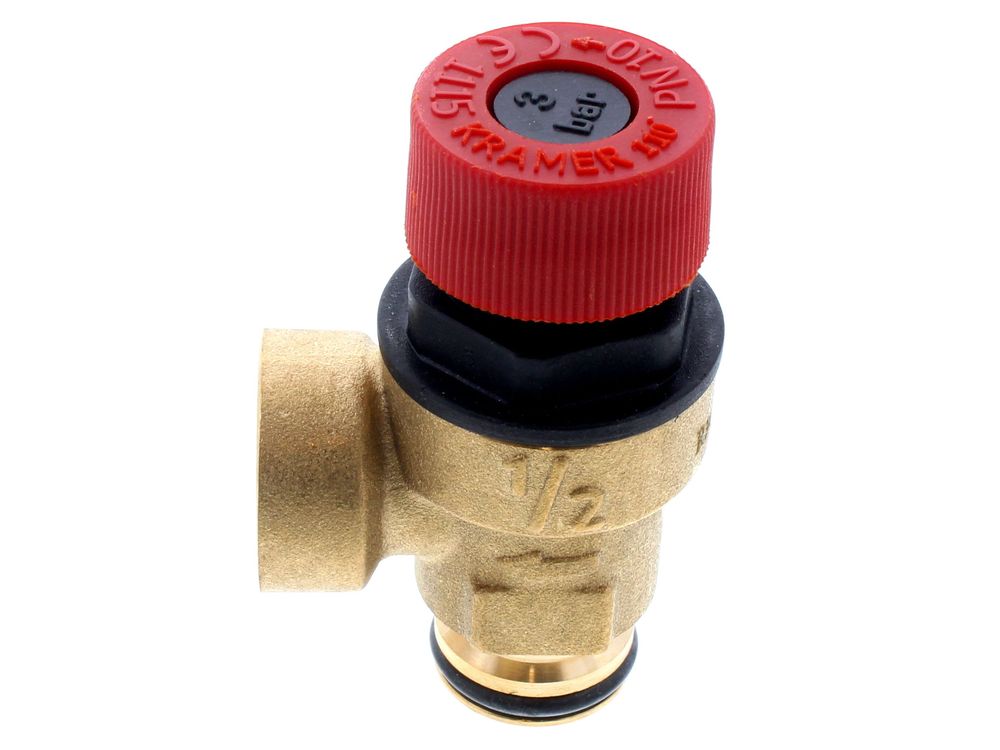

Ravenheat Safety Relief Valve 0008VAL01017/0
Ravenheat 3 bar safety relief valve with push fit x 1/2F connection for compatible Ravenheat gas boilers.
At a glance
- Also known as 1840647
£19.46
£16.22 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0008VAL01017/0 is a 3 bar safety relief valve for Ravenheat gas boilers. It is a push to screw fit component with a push fit x 1/2F connection. The valve opens at its rated pressure to discharge water and protect the boiler and system from overpressure.
Signs this part needs replacing
- Water dripping or discharging from the relief valve discharge pipe when the system is not overpressure.
- Boiler pressure repeatedly dropping or failing to hold set pressure.
- Visible scale, corrosion or debris around the valve seat or outlet.
- Valve not sealing after manual test or operation.
- Discharge pipe running continuously.
Before you order
- Check the boiler model against the fitment list above.
- Confirm the connection type is push fit x 1/2F.
- Confirm the required pressure rating is 3 bar.
- Check the GC number on the appliance data badge where applicable.
Compliance
| GC number | E23-723 |
|---|---|
| Barcode / EAN | 5060022145696 |
| Alternative numbers | 1840647 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT LITTLE STAR LS 100 LPG | 47-581-35 | 47-581-35 | — | — |
| RAVENHEAT LITTLE STAR LS 100 NATURAL GAS | 47-581-33 | 47-581-33 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T LPG | 47-581-36 | 47-581-36 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T NATURAL GAS | 47-581-34 | 47-581-34 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) LPG | 47-581-32 | 47-581-32 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) NATURAL GAS | 47-581-30 | 47-581-30 | — | — |
| RAVENHEAT LITTLE STAR LS 80 LPG | 47-581-31 | 47-581-31 | — | — |
| RAVENHEAT LITTLE STAR LS 80 NATURAL GAS | 47-581-29 | 47-581-29 | — | — |
| RAVENHEAT RAVENHEAT CSI 85 | — | — | — | |
| RAVENHEAT RAVENHEAT CSI 85A | — | — | — |
Showing 10 of 56 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — LITTLE STAR LS 100 LPG (GC 47-581-35), LITTLE STAR LS 100 NATURAL GAS (GC 47-581-33), LITTLE STAR LS 100 T LPG (GC 47-581-36), LITTLE STAR LS 100 T NATURAL GAS (GC 47-581-34), LITTLE STAR LS 80 (T) LPG (GC 47-581-32), LITTLE STAR LS 80 (T) NATURAL GAS (GC 47-581-30), LITTLE STAR LS 80 LPG (GC 47-581-31), LITTLE STAR LS 80 NATURAL GAS (GC 47-581-29), SILVER STAR 24 LPG, SILVER STAR 24 NATURAL GAS (GC 47-581-29), SILVER STAR 24T LPG, SILVER STAR 24T NATURAL GAS (GC 47-581-30), SILVER STAR 29 LPG (GC 47-581-35), SILVER STAR 29 NATURAL GAS (GC 47-581-33), SILVER STAR 29T LPG (GC 47-581-36), SILVER STAR 29T NATURAL GAS (GC 47-581-34), WHITE STAR 24 LPG, WHITE STAR 24 NATURAL GAS (GC 47-581-29), WHITE STAR 24T LPG, WHITE STAR 24T NATURAL GAS (GC 47-581-30), WHITE STAR 29 LPG (GC 47-581-35), WHITE STAR 29 NATURAL GAS (GC 47-581-33), WHITE STAR 29T LPG (GC 47-581-36), WHITE STAR 29T NATURAL GAS (GC 47-581-34)
manualmanualRAVENHEAT appliance manual — RSF 100E LPG, RSF 100E NATURAL GAS (GC 47-581-25), RSF 100E T LPG, RSF 100E T NATURAL GAS (GC 47-581-26), RSF 84E LPG, RSF 84E NATURAL GAS (GC 47-581-27), RSF 84E T LPG, RSF 84E T NATURAL GAS (GC 47-581-28)
manualmanualRAVENHEAT appliance manual — RSF 820/20T NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — RSF 82E LPG, RSF 82E NATURAL GAS (GC 47-581-18), RSF 82E T LPG, RSF 82E T NATURAL GAS (GC 47-581-04)
manualNo technical questions yet for this part.
