Ravenheat
Ravenheat Clip On Sensor 0007SON11010/0
At a glance
- Part type: Sensor (thermistor)
- Also known as 1841179
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£26.47
£22.06 ex. VAT · VAT at 20%
In stock
Order within 3m for same-day dispatch
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

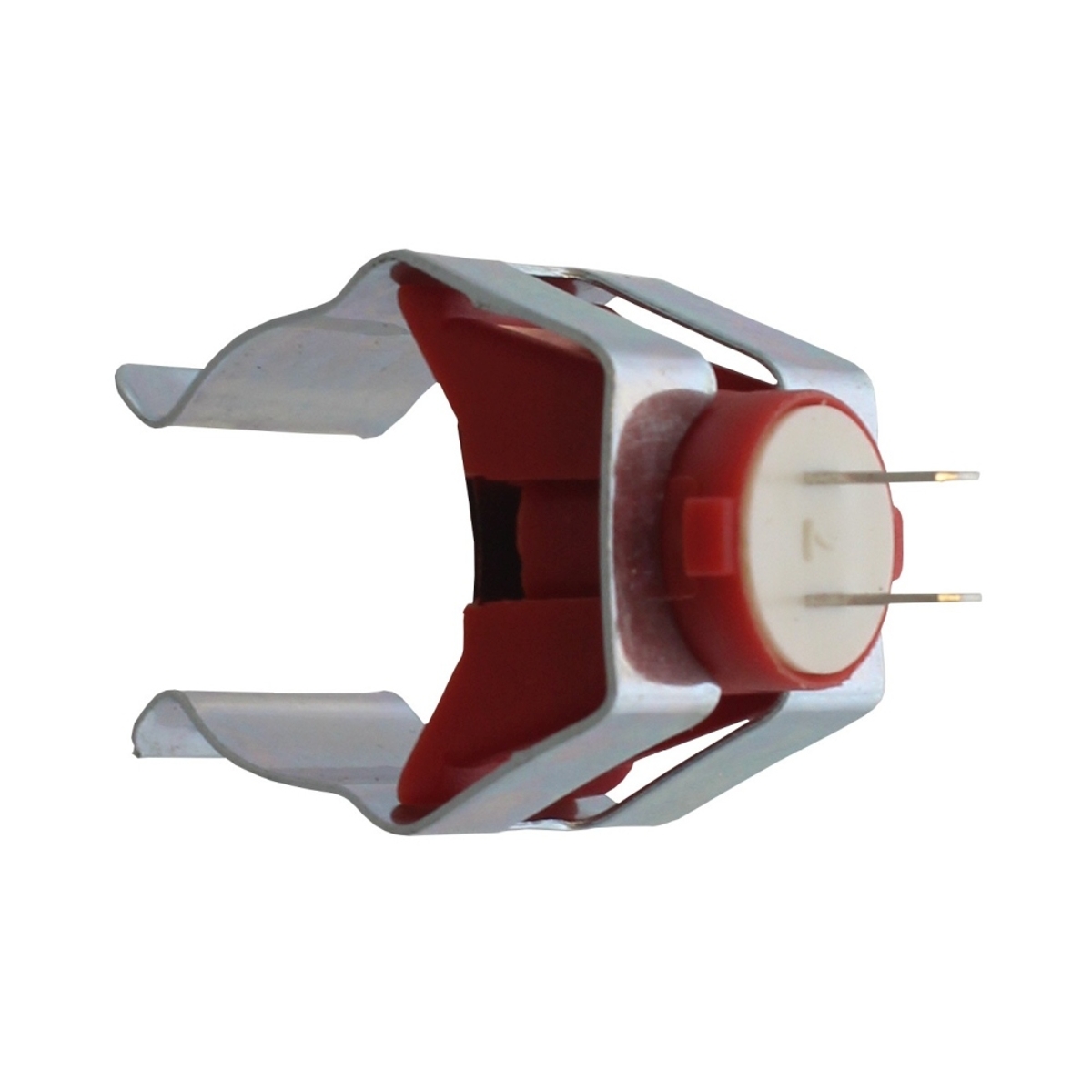

The Ravenheat clip-on sensor, part number 0007SON11010/0, is a thermistor that clips onto the pipework or heat exchanger surface and reports temperature back to the boiler's electronic control. Its resistance falls as the sensed temperature rises, so the control can read the change in current and decide whether more or less heat is needed. It is used across Ravenheat's Combistore and CS appliance families.
Signs this part needs replacing
- The boiler fires and then cuts out before the system reaches its set temperature.
- Domestic hot water temperature swings between hot and cold, or runs consistently cool.
- The appliance locks out or displays a fault code linked to temperature sensing.
- Radiators heat unevenly, or the boiler short cycles on and off.
- No heating or hot water demand is registered by the control.
Before you order
- Check the GC number and the appliance data plate to confirm the model before ordering.
- Compare the number printed on the existing sensor against 0007SON11010/0 and the alternative numbers listed below.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 0007SON11010/0 |
|---|---|
| Barcode / EAN | 5060022143340 |
| Commodity code | 8533 40 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5060022143340, RAVENHEAT0007SON11010/0, CLIP-ON-SENSOR-18MM-CH, RAVENHEAT0007SON11010/0, 0007SON11015/0, 0007TER05006/0, SON110100, SON110150, TER050060, 1841179 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT 120 COMBISTORE (T) LOW NOX | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT 150 COMBISTORE (T) LOW NOX | 47-581-40 | 47-581-40 | — | — |
| RAVENHEAT CS 80 | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 80 LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 90 | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS 90 LPG | 47-581-49 | 47-581-49 | — | — |
Showing 10 of 116 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
RAVENHEAT appliance manual — 120 COMBISTORE (T) LOW NOX (GC 47-581-39), 150 COMBISTORE (T) LOW NOX (GC 47-581-40), CSI 120 T COMBIPLUS LOW NOX, CSI 150 T COMBIPLUS LOW NOX
manualmanualRAVENHEAT appliance manual — CS 80 (GC 47-581-46), CS 80 (T) (GC 47-581-46), CS 80 (T) LPG (GC 47-581-47), CS 80 LPG (GC 47-581-47), CS 90 (GC 47-581-48), CS 90 (T) (GC 47-581-48), CS 90 (T) LPG (GC 47-581-49), CS 90 LPG (GC 47-581-49)
manualmanualRAVENHEAT appliance manual — CS SYSTEM 3-20, CS SYSTEM 3-20 LPG, CS SYSTEM 4-24, CS SYSTEM 4-24 LPG, WH SYSTEM 3-20, WH SYSTEM 3-20 LPG, WH SYSTEM 4-24, WH SYSTEM 4-24 LPG
manualmanualRAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39), CSI 150 LOW NOX LPG, CSI 150 LOW NOX NATURAL GAS, CSI 150 T LOW NOX LPG (GC 47-581-42), CSI 150 T LOW NOX NATURAL GAS (GC 47-581-40)
manualmanualRAVENHEAT appliance manual — CSI 85A LPG, CSI 85A NATURAL GAS, CSI 85A T LPG, CSI 85A T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI PRIMARY AAA LPG (GC 47-581-06), CSI PRIMARY AAA NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — HE 120N (T) LOW NOX, HE 120N LOW NOX, HE 150N (T) LOW NOX, HE 150N LOW NOX
manualmanualRAVENHEAT appliance manual — HE 25S COMPACT, HE 30S COMPACT
manualmanualRAVENHEAT appliance manual — HE 80, HE 80 LPG, HE 80 T, HE 80 T LPG, HE 98, HE 98 LPG, HE 98 T, HE 98 T LPG
manualmanualRAVENHEAT appliance manual — HE 80S SYSTEM, HE 80S SYSTEM LPG, HE 98S SYSTEM, HE 98S SYSTEM LPG
manualmanualRAVENHEAT appliance manual — HE 80S, HE 98S
manualmanualRAVENHEAT appliance manual — HE PRIMARY AAA LPG (GC 47-581-06), HE PRIMARY AAA NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — WH SYSTEM 6-24 (GC 41-506-01), WH SYSTEM 6-24 LPG (GC 41-506-02), WH SYSTEM 9-32 (GC 41-506-03), WH SYSTEM 9-32 LPG (GC 41-506-04)
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 100 LPG, WHITE HEAT WH 100 NAT GAS, WHITE HEAT WH 100 T LPG (GC 47-506-02), WHITE HEAT WH 100 T NAT GAS (GC 47-506-01), WHITE HEAT WH 130 LPG (GC 47-506-03), WHITE HEAT WH 130 NAT GAS (GC 47-506-03), WHITE HEAT WH 130 T LPG (GC 47-506-04), WHITE HEAT WH 130 T NAT GAS (GC 47-506-03), WHITE HEAT WH 80 LPG (GC 47-506-06), WHITE HEAT WH 80 NAT GAS (GC 47-506-05), WHITE HEAT WH 80 T LPG (GC 47-506-06), WHITE HEAT WH 80 T NAT GAS (GC 47-506-05), WHITE HEAT WH 90 LPG (GC 47-506-08), WHITE HEAT WH 90 NAT GAS (GC 47-506-07), WHITE HEAT WH 90 T LPG (GC 47-506-08), WHITE HEAT WH 90 T NAT GAS (GC 47-506-07)
