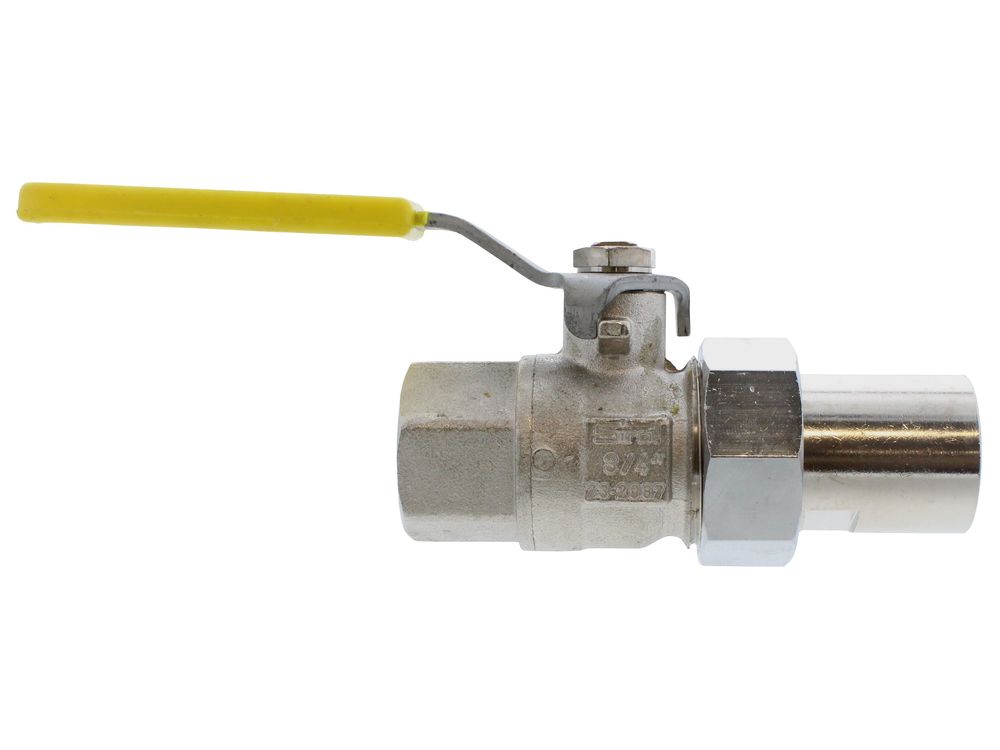

Ideal Union Gas Cock Rc3/4 x Rc3/4 000471
Ideal 000471 union gas cock with Rc3/4 x Rc3/4 connections, the gas isolation point on Ideal Commercial Concord series boilers.
At a glance
- Part type: Gas cock (isolation valve)
- Also known as 1170010
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£106.28
£88.57 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 000471 is a union gas cock with Rc3/4 threaded connections at both ends. It forms the gas isolation point on the appliance, letting the gas supply be shut off at the boiler for servicing, pressure testing or safe isolation. Ideal lists this cock against its Commercial Concord range, where it is fitted in the gas train ahead of the burner assembly.
Signs this part needs replacing
- A gas smell or a leak detected at the cock body or the union joints
- A stiff, seized or snapped handle that will not move through its full travel
- Gas passing through the cock when the handle is in the closed position
- Weeping, staining or corrosion around the union nuts and body
- Visible pitting or damage to the threaded connections
Before you order
- Confirm the model and GC number from the appliance data badge before ordering
- Check that both connections on the existing cock are Rc3/4 union fittings
- Cross-reference the alternative number 1170010 if the original marking is unclear
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Cock |
|---|
Compliance
| Manufacturer part number (MPN) | 000471 |
|---|---|
| Barcode / EAN | 5022140004712 |
| Commodity code | 8481 80 39 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1170010 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD 1050 - SERIES 4 | 41-415-43 | 41-415-43 | — | — |
| IDEAL COMMERCIAL CONCORD 1250 - SERIES 4 | 41-415-45 | 41-415-45 | — | — |
| IDEAL COMMERCIAL CONCORD 1350 - SERIES 4 | 41-415-46 | 41-415-46 | — | — |
| IDEAL COMMERCIAL CONCORD 1450 - SERIES 4 | 41-415-47 | 41-415-47 | — | — |
| IDEAL COMMERCIAL CONCORD 450 - SERIES 4 | 41-415-37 | 41-415-37 | — | — |
| IDEAL COMMERCIAL CONCORD 550 - SERIES 4 | 41-415-38 | 41-415-38 | — | — |
| IDEAL COMMERCIAL CONCORD 650 - SERIES 4 | 41-415-39 | 41-415-39 | — | — |
| IDEAL COMMERCIAL CONCORD 750 - SERIES 4 | 41-415-40 | 41-415-40 | — | — |
| IDEAL COMMERCIAL CONCORD 850 - SERIES 4 | 41-415-41 | 41-415-41 | — | — |
| IDEAL COMMERCIAL CONCORD 950 - SERIES 4 | 41-415-42 | 41-415-42 | — | — |
Showing 10 of 34 compatible appliances.
