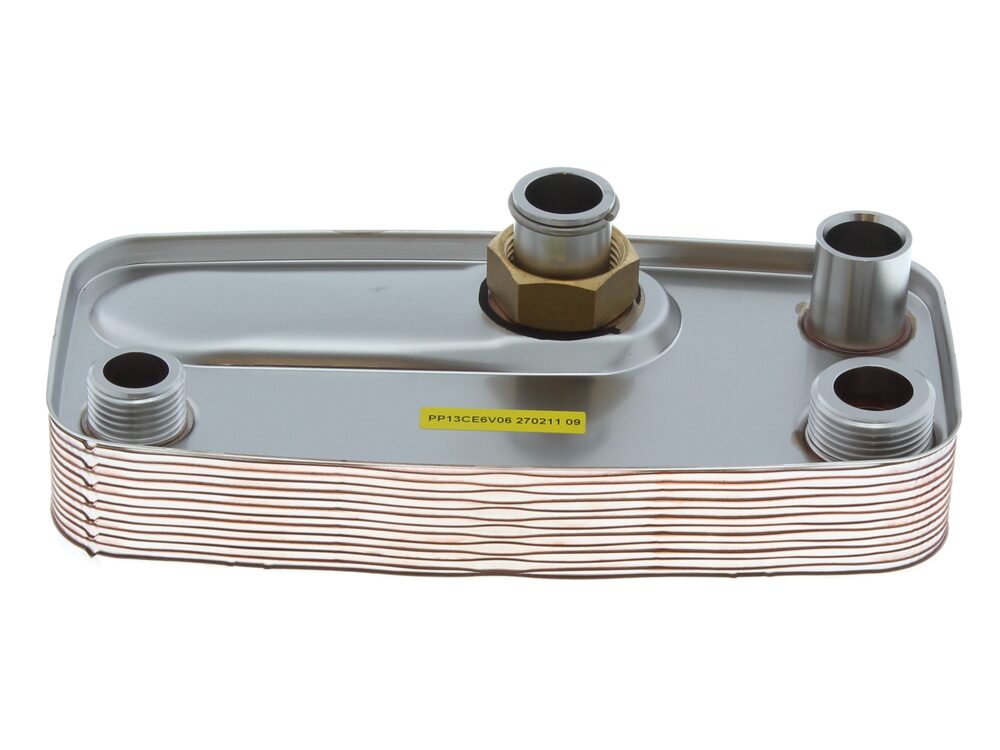

Ravenheat DHW Heat Exchanger 0002SCA09015/0
DHW heat exchanger with nut in middle for Ravenheat gas boilers, part number 0002SCA09015/0.
At a glance
- Also known as 1840461
£207.76
£173.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat DHW heat exchanger (nut in middle) is a domestic hot water heat exchanger for Ravenheat gas boilers. It transfers heat from the primary circuit to the domestic hot water supply. This part is identified by Ravenheat part number 0002SCA09015/0.
Signs this part needs replacing
- Domestic hot water runs cool or fluctuates in temperature
- Reduced hot water flow at taps
- Visible leaks or weeping from the heat exchanger body or connections
- Scale or debris build-up restricting the DHW circuit
- Boiler lockout or overheating linked to the DHW heat exchanger
Before you order
- Check the boiler model and GC number against the fitment list.
- Confirm the existing part number is 0002SCA09015/0.
- Check whether the boiler is Natural Gas or LPG, as fitment varies by fuel type.
- Confirm the heat exchanger has the nut in the middle configuration.
Compliance
| Barcode / EAN | 5060022142169 |
|---|---|
| Alternative numbers | 1840461 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 120 LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 LOW NOX NATURAL GAS | 47-581-37 | 47-581-37 | — | — |
| RAVENHEAT CSI 120 T LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 T LOW NOX NATURAL GAS | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT LITTLE STAR LS 100 LPG | 47-581-35 | 47-581-35 | — | — |
| RAVENHEAT LITTLE STAR LS 100 NATURAL GAS | 47-581-33 | 47-581-33 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T LPG | 47-581-36 | 47-581-36 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T NATURAL GAS | 47-581-34 | 47-581-34 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) LPG | 47-581-32 | 47-581-32 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) NATURAL GAS | 47-581-30 | 47-581-30 | — | — |
Showing 10 of 36 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39)
manualmanualRAVENHEAT appliance manual — LITTLE STAR LS 100 LPG (GC 47-581-35), LITTLE STAR LS 100 NATURAL GAS (GC 47-581-33), LITTLE STAR LS 100 T LPG (GC 47-581-36), LITTLE STAR LS 100 T NATURAL GAS (GC 47-581-34), LITTLE STAR LS 80 (T) LPG (GC 47-581-32), LITTLE STAR LS 80 (T) NATURAL GAS (GC 47-581-30), LITTLE STAR LS 80 LPG (GC 47-581-31), LITTLE STAR LS 80 NATURAL GAS (GC 47-581-29), SILVER STAR 24 LPG, SILVER STAR 24 NATURAL GAS (GC 47-581-29), SILVER STAR 24T LPG, SILVER STAR 24T NATURAL GAS (GC 47-581-30), SILVER STAR 29 LPG (GC 47-581-35), SILVER STAR 29 NATURAL GAS (GC 47-581-33), SILVER STAR 29T LPG (GC 47-581-36), SILVER STAR 29T NATURAL GAS (GC 47-581-34), WHITE STAR 24 LPG, WHITE STAR 24 NATURAL GAS (GC 47-581-29), WHITE STAR 24T LPG, WHITE STAR 24T NATURAL GAS (GC 47-581-30), WHITE STAR 29 LPG (GC 47-581-35), WHITE STAR 29 NATURAL GAS (GC 47-581-33), WHITE STAR 29T LPG (GC 47-581-36), WHITE STAR 29T NATURAL GAS (GC 47-581-34)
manualNo technical questions yet for this part.
