Ravenheat

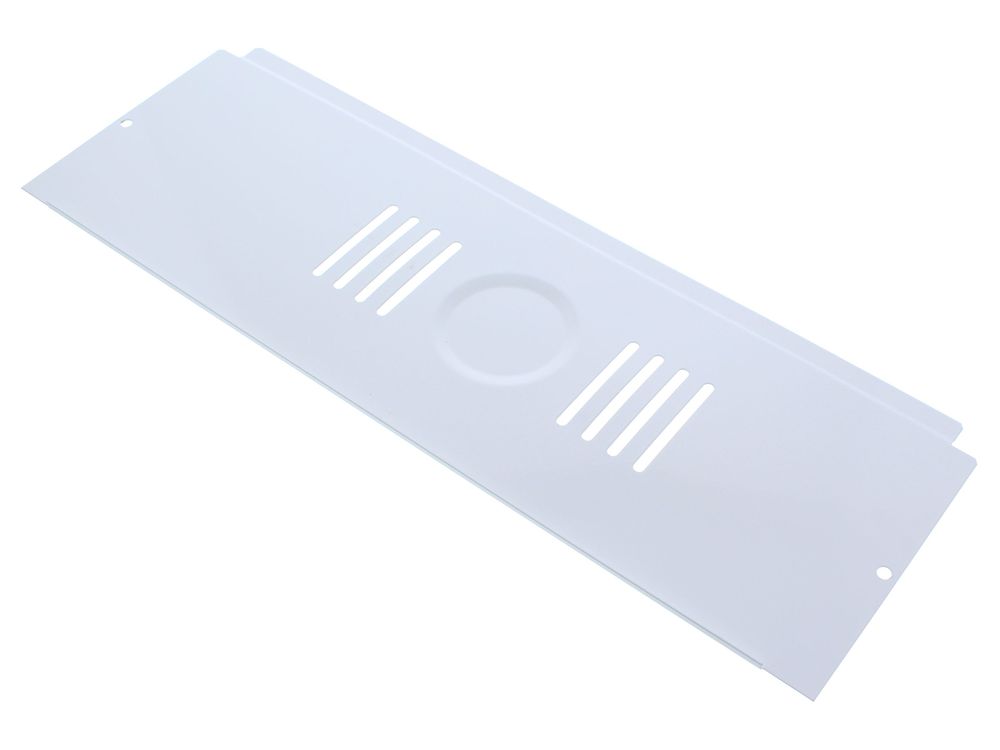

Ravenheat Bottom Panel 0001MAN05005/0
Ravenheat bottom panel for CSI 85, 85B, 85T and CSI System gas boiler casing.
At a glance
- Part type: bottom panel (casing)
- Also known as BOTTOM-PANEL-828485SYS, 1841251
£31.32
£26.10 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0001MAN05005/0 is the bottom panel for the casing of Ravenheat CSI 82, 84, 85 and System gas boilers. It closes off the underside of the appliance case, forming part of the outer casing assembly. It is a Ravenheat-manufactured casing component for the CSI range.
Signs this part needs replacing
- Visible corrosion or rust perforation along the panel
- Distortion or bending that prevents the panel sitting flush
- Impact damage or cracking to the panel
- Panel missing, leaving the underside of the casing open
- Panel no longer securing correctly to the boiler case
Before you order
- Confirm your boiler model and GC number against the fit list above
- Check the existing panel's part number or marking where visible
- Verify whether your appliance is the standard, T or AAA variant
Compliance
| GC number | E23-754 |
|---|---|
| Barcode / EAN | 5060022145214 |
| Alternative numbers | BOTTOM-PANEL-828485SYS, 1841251 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85B LPG | — | — | — | |
| RAVENHEAT CSI 85B NATURAL GAS | 47-581-45 | 47-581-45 | — | — |
| RAVENHEAT CSI 85B T LPG | — | — | — | |
| RAVENHEAT CSI 85B T NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85T LPG | 47-581-24 | 47-581-24 | — | — |
| RAVENHEAT CSI 85T NATURAL GAS | 47-581-20 | 47-581-20 | — | — |
| RAVENHEAT CSI SYSTEM AAA LPG | — | — | — | |
| RAVENHEAT CSI SYSTEM AAA NATURAL GAS | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 85 LPG (GC 47-581-23), CSI 85 NATURAL GAS (GC 47-581-19), CSI 85T LPG (GC 47-581-24), CSI 85T NATURAL GAS (GC 47-581-20)
manualmanualRAVENHEAT appliance manual — CSI 85B LPG, CSI 85B NATURAL GAS (GC 47-581-45), CSI 85B T LPG, CSI 85B T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM AAA LPG, CSI SYSTEM AAA NATURAL GAS, CSI SYSTEM AAA T LPG, CSI SYSTEM AAA T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM LPG (GC 47-581-03), CSI SYSTEM NATURAL GAS (GC 47-581-01), CSI SYSTEM T LPG (GC 41-581-04), CSI SYSTEM T NATURAL GAS (GC 47-581-02)
manualNo technical questions yet for this part.
