Ideal

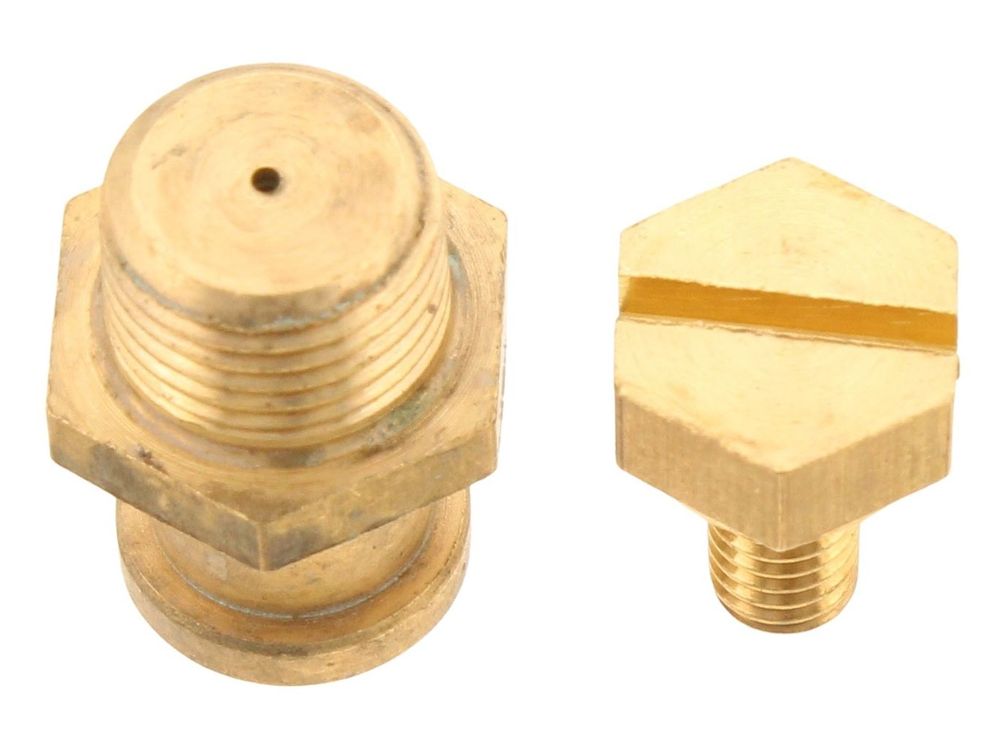

Ideal Pressure Test Nipple 1/8 Inch 000030
Ideal 000030 1/8 inch pressure test nipple for Ideal Commercial Concord and related boiler models, used at the test point for pressure readings.
At a glance
- Part type: pressure test nipple
- Also known as 1170001
£13.46
£11.22 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 000030 is a 1/8 inch pressure test nipple manufactured by Ideal for use on Ideal Commercial boiler appliances. It provides the threaded test point where a manometer or pressure gauge is connected to check operating pressures during commissioning, servicing and fault diagnosis. The nipple is a small but critical item on the gas train, and a worn or damaged one can prevent an accurate reading or allow a slight weep at the test point.
Signs this part needs replacing
- A visible weep or gas smell at the test point after the cap or gauge is removed
- Damaged, flattened or cross-threaded nipple threads that will not accept a test gauge cleanly
- Difficulty obtaining a steady, repeatable pressure reading at the test point
- Corrosion or scale build-up around the nipple on older appliances
- Nipple snapped or sheared off during servicing, leaving the threaded stub in the housing
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant
- Confirm the model and series, as Concord 1050 and 1150 ranges use several different test point arrangements
- Inspect the sealing washer or joint at the test point and replace it if it is compressed or perished
Mechanical
| Part type | Pressure Test Nipple |
|---|
Compliance
| Manufacturer part number (MPN) | 000030 |
|---|---|
| Barcode / EAN | 5022140000301 |
| Commodity code | 7412 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170001 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELAN 2 40F (HONEYWELL) | 41-415-62 | 41-415-62 | — | — |
| IDEAL ELAN 2 40F (SIT CONTROLS) | 41-421-12 | 41-421-12 | — | — |
| IDEAL ELAN 2 40FP | — | — | — | |
| IDEAL ELAN 2 50F (HONEYWELL) | 41-415-72 | 41-415-72 | — | — |
| IDEAL ELAN 2 50F (SIT CONTROLS) | 41-421-13 | 41-421-13 | — | — |
| IDEAL ELAN 2 50FP | — | — | — | |
| IDEAL ELAN 2 60F (HONEYWELL) | 41-415-61 | 41-415-61 | — | — |
| IDEAL ELAN 2 60F (SIT CONTROLS) | 41-421-14 | 41-421-14 | — | — |
| IDEAL ELAN 2 60FP | — | — | — | |
| IDEAL ELAN 2 80F (HONEYWELL) | 41-415-60 | 41-415-60 | — | — |
Showing 10 of 122 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 40 SERIES 3 (GC 41-387-60), CONCORD CX 40P SERIES 3 - PROPANE, CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 60P SERIES 3 - PROPANE, CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 80P SERIES 3 - PROPANE, CONCORD CX 90 SERIES 3 (GC 41-387-65), CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD SUPER SERIES 4 - HORIZONTAL, CONCORD SUPER SERIES 4 - VERTICAL
manualmanualIDEAL appliance manual — ELAN 2 40F (HONEYWELL) (GC 41-415-62), ELAN 2 40F (SIT CONTROLS) (GC 41-421-12), ELAN 2 50F (HONEYWELL) (GC 41-415-72), ELAN 2 50F (SIT CONTROLS) (GC 41-421-13), ELAN 2 60F (HONEYWELL) (GC 41-415-61), ELAN 2 60F (SIT CONTROLS) (GC 41-421-14), ELAN 2 80F (HONEYWELL) (GC 41-415-60), ELAN 2 80F (SIT CONTROLS) (GC 41-421-15)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
