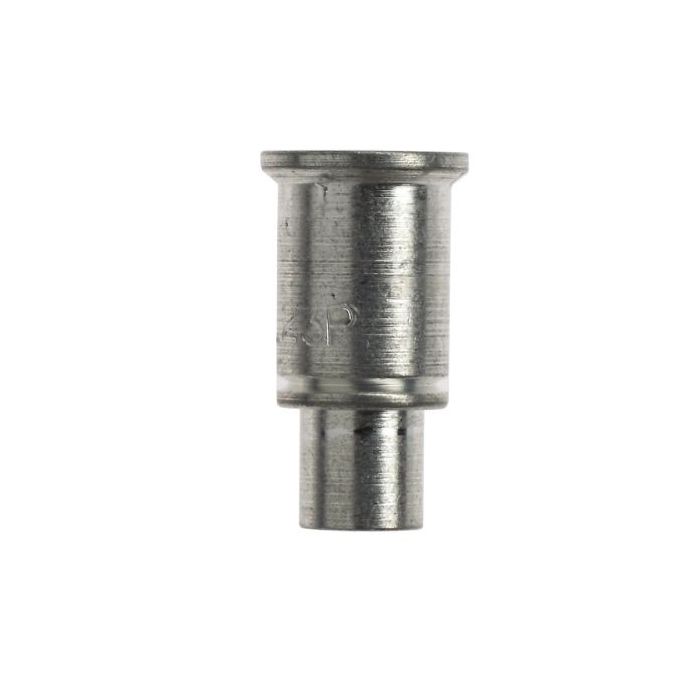

Worcester Bosch Pilot Injector LPG 87161563020
At a glance
- Part type: Pilot injector
- Also known as WB87161563020, 45004114, 1019395
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
AvailabilityCall for price
Availability: no longer made. Call us and we'll check for stock.
No longer made: call us
The manufacturer has discontinued this part. Our team will check for remaining stock or a suitable replacement.
01302 279234Opening hours
- Mon–Fri
- 7:30am–5pm
- Sat
- 9am–12pm
- Sun
- Closed
Or request a price online
Tell us what you need and we will come back to you. No payment is taken.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161563020 is a pilot injector manufactured for LPG-fired Worcester Bosch appliances. It sits in the pilot burner assembly and meters the gas supply to the pilot flame, so the flame is the correct size and shape to light the main burner reliably. The injector is a service item: once the orifice becomes restricted or worn, the pilot flame weakens and ignition becomes erratic.
Signs this part needs replacing
- The pilot flame will not stay lit after the button or ignition sequence is released.
- The pilot flame is noticeably weak, short or uneven compared with normal operation.
- The pilot flame burns yellow or lifts away from the burner instead of holding a steady blue shape.
- Sooting or discolouration appears around the pilot burner and the appliance struggles to light the main burner.
- Repeated lockouts on ignition, particularly on older LPG appliances where the injector has never been changed.
Before you order
- Check the appliance GC number and model plate against the compatibility list, as the same appliance family can use different injectors by fuel type and revision.
- Confirm the previous part number ZBGAS046 against the injector currently fitted before ordering.
- Inspect the pilot burner and its seals while the assembly is apart, and renew any gasket or washer that is disturbed during the swap.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pilot injector |
|---|
Compliance
| Manufacturer part number (MPN) | 87161563020 |
|---|---|
| GC number | 790-272 |
| Alternative numbers | 45004114, WB87161563020, ZBGAS046, 1019395 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 240 RSF LPG | — | — | — | |
| WORCESTER 280 RSF LPG | 47-311-11 | 47-311-11 | — | — |
| WORCESTER 9.24 ELECTRONIC TSW & MK2 RSF | 47-311-06 | 47-311-06 | — | — |
| WORCESTER HEATSLAVE 9.24 MK 1 & MK 1.5 RSF | — | — | — | |
| WORCESTER HIGHFLOW 3.5 BF COMBI NG | 41-311-39 | 41-311-39 | — | — |
| WORCESTER HIGHFLOW 3.5 OF COMBI NG | 41-311-38 | 41-311-38 | — | — |
| WORCESTER HIGHFLOW 3.5 RSF COMBI NG | 41-311-40 | 41-311-40 | — | — |
| WORCESTER HIGHFLOW 4.5 BF COMBI NG | 41-311-42 | 41-311-42 | — | — |
| WORCESTER HIGHFLOW 4.5 OF COMBI NG | 41-311-41 | 41-311-41 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 240 RSF LPG
manualmanualWORCESTER appliance manual — 280 RSF LPG (GC 47-311-11)
manualmanualWORCESTER appliance manual — 9.24 ELECTRONIC TSW & MK2 RSF (GC 47-311-06)
manualmanualWORCESTER appliance manual — HEATSLAVE 9.24 MK 1 & MK 1.5 RSF
manualmanualWORCESTER appliance manual — HIGHFLOW 3.5 BF COMBI NG (GC 41-311-39), HIGHFLOW 3.5 OF COMBI NG (GC 41-311-38), HIGHFLOW 3.5 RSF COMBI NG (GC 41-311-40), HIGHFLOW 4.5 BF COMBI NG (GC 41-311-42), HIGHFLOW 4.5 OF COMBI NG (GC 41-311-41)
manualNo technical questions yet for this part.
Not sure which part?
Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
