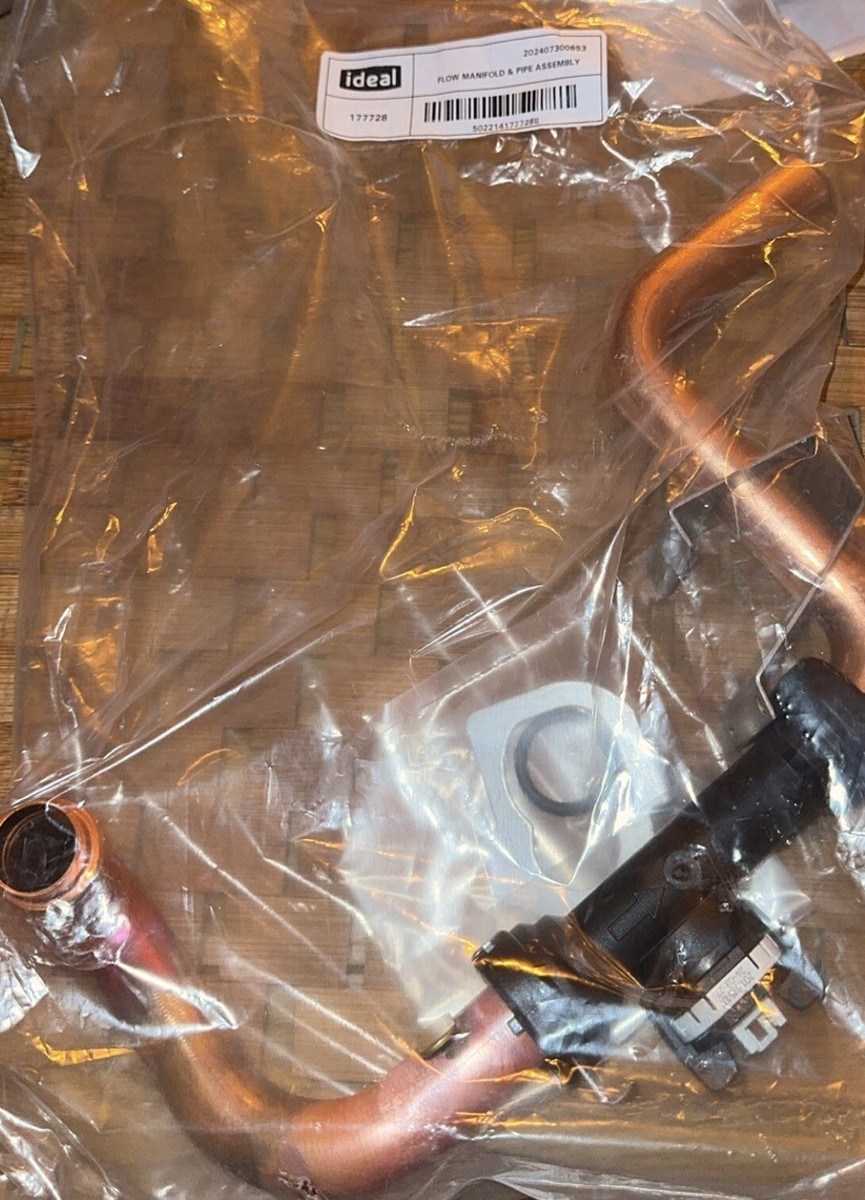

Ideal Flow Manifold Assembly 177728

Ideal

Ideal Flow Manifold Assembly 177728

Flow manifold and pipe assembly for Ideal Logic+ Heat and Ideal Commercial appliances, part 177728, routing heating water to the circuits.

At a glance

  • Part type: Flow manifold and pipe assembly
  • Also known as 1376502, 177728IDE
Hanicks code
177728
Manufacturer part no.
177728

AvailabilityCall for price

Manufacturer RRP £92.51 inc. VAT (for reference)

Availability: no longer made. Call us and we'll check for stock.

No longer made: call us

The manufacturer has discontinued this part. Our team will check for remaining stock or a suitable replacement.

01302 279234

Opening hours

Mon–Fri
7:30am–5pm
Sat
9am–12pm
Sun
Closed

Or request a price online

Tell us what you need and we will come back to you. No payment is taken.

Part: 177728 Ideal Flow Manifold Assembly 177728

Whichever you would like us to reply to.

Helps us check the part fits.

30-day returns

Unused, in original packaging.

What it is

The Ideal 177728 is a flow manifold and pipe assembly used in Ideal Logic+ Heat and Ideal Commercial appliances. It forms part of the hydraulic assembly inside the boiler casing, taking heated primary water and distributing it to the individual heating circuits. The assembly is supplied as a matched component, so its pipe runs and connection points line up with the appliance it is built for.

Signs this part needs replacing

  • Uneven or reduced heat across radiators or heating circuits
  • Water weeping, dripping or staining around the manifold body or pipe joints
  • Kettling, gurgling or trapped air noise traced back to the manifold
  • Boiler locking out or reporting a flow-related fault
  • Visible corrosion, scale build-up or cracking on the manifold or its pipework

Before you order

  • Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant.
  • Confirm the model and serial number, as this assembly serves several Logic+ Heat and Ideal Commercial variants.
  • Inspect the seals and O-rings at the manifold connections and renew them if they are compressed or perished.
  • Compare the new assembly against the removed part before fitting.

Not sure which part?

Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
