Baxi

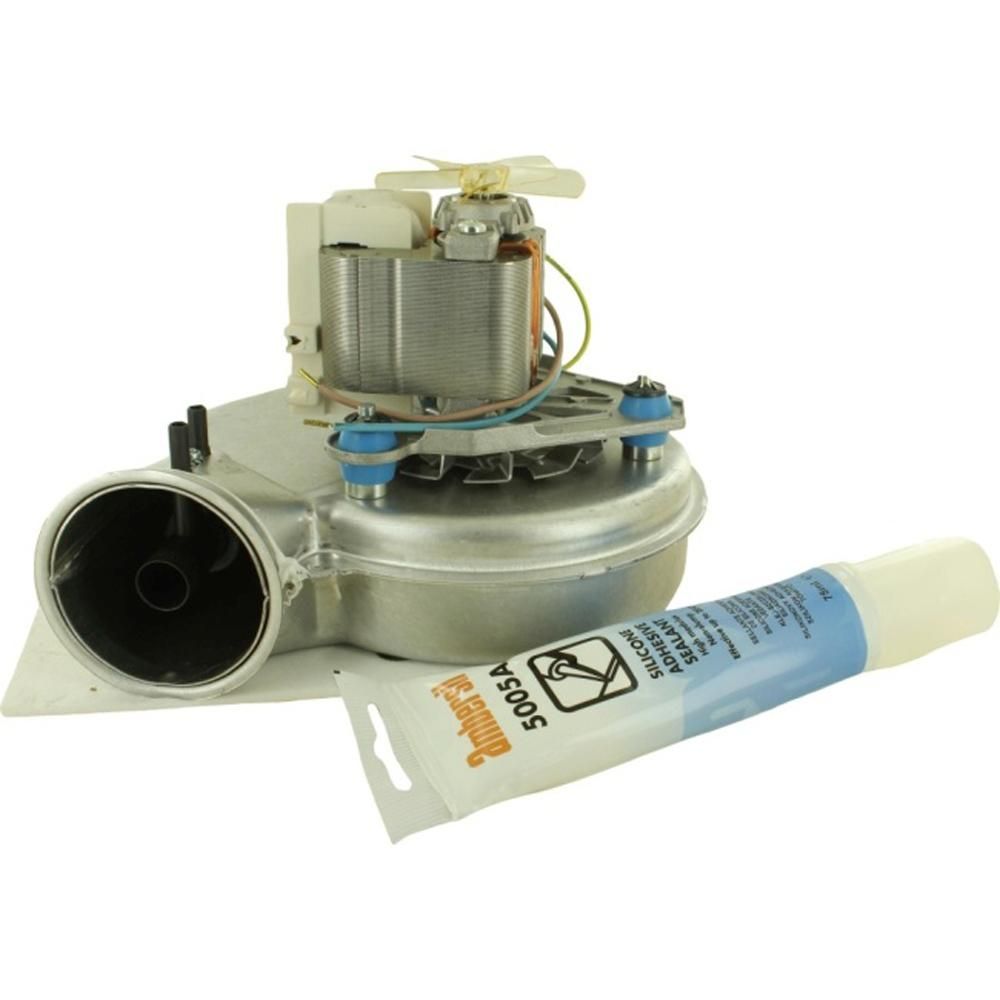

Baxi 246052 Fan Assembly Sifan WFFB0228-001 Large
At a glance
- Part type: Fan impellors and fan assembly
- Also known as 1115884, N9264
£403.86
£336.55 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi Large Fan Kit is a fan impellor and fan assembly supplied by Baxi for use in its standard water heater range. The fan moves combustion air through the appliance and discharges flue products to atmosphere, so it sits at the centre of safe, stable operation. Part number BAXI246052 (also listed as 246052) covers the complete kit rather than a single impellor.
Signs this part needs replacing
- Grinding, scraping or rumbling noise from the fan housing when the appliance fires
- Fan running slowly, intermittently or not at all on a call for heat
- Repeated lockouts or ignition faults that clear when the fan is disturbed
- Overheating or poor flue performance traced to restricted air movement
- Visible damage, play or contamination on the impellor or fan body
Before you order
- Confirm the model and GC number on the appliance data badge match the part number required
- Check the existing fan assembly against the kit before fitting, as mounting and connector arrangements vary between appliance variants
- Inspect the fan gasket or sealing arrangement and renew it if it is compressed, torn or contaminated
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | BAXI246052 |
|---|---|
| GC number | E26-213 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 246052, 246052, 246052, 246052, 1115884, 246052, N9264 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI SOLO 3 60PF | — | — | — | |
| BAXI BAXI SOLO 3 60PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 60PFL | — | — | — | |
| BAXI BAXI SOLO 3 60PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 70PF | — | — | — | |
| BAXI BAXI SOLO 3 70PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 70PFL | — | — | — | |
| BAXI BAXI SOLO 3 70PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 80PF | — | — | — | |
| BAXI BAXI SOLO 3 80PF SYSTEM | — | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — SOLO 3 60 PF (GC 41-075-07), SOLO 3 70 PF (GC 41-075-08), SOLO 3 80 PF (GC 41-075-09)
manualmanualBAXI appliance manual — SOLO 3 60 PF SYSTEM (GC 41-075-15), SOLO 3 70 PF SYSTEM (GC 41-075-16), SOLO 3 80 PF SYSTEM (GC 41-075-17)
manualmanualBAXI appliance manual — SOLO 3 60 PFL (GC 41-075-23), SOLO 3 70 PFL (GC 41-075-24), SOLO 3 80 PFL (GC 41-075-30)
manualmanualBAXI appliance manual — SOLO 3 60 PFL SYSTEM (GC 41-075-28), SOLO 3 70 PFL SYSTEM (GC 41-075-29), SOLO 3 80 PFL SYSTEM (GC 41-075-31)
manualNo technical questions yet for this part.
Not sure which part?
Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
