Baxi

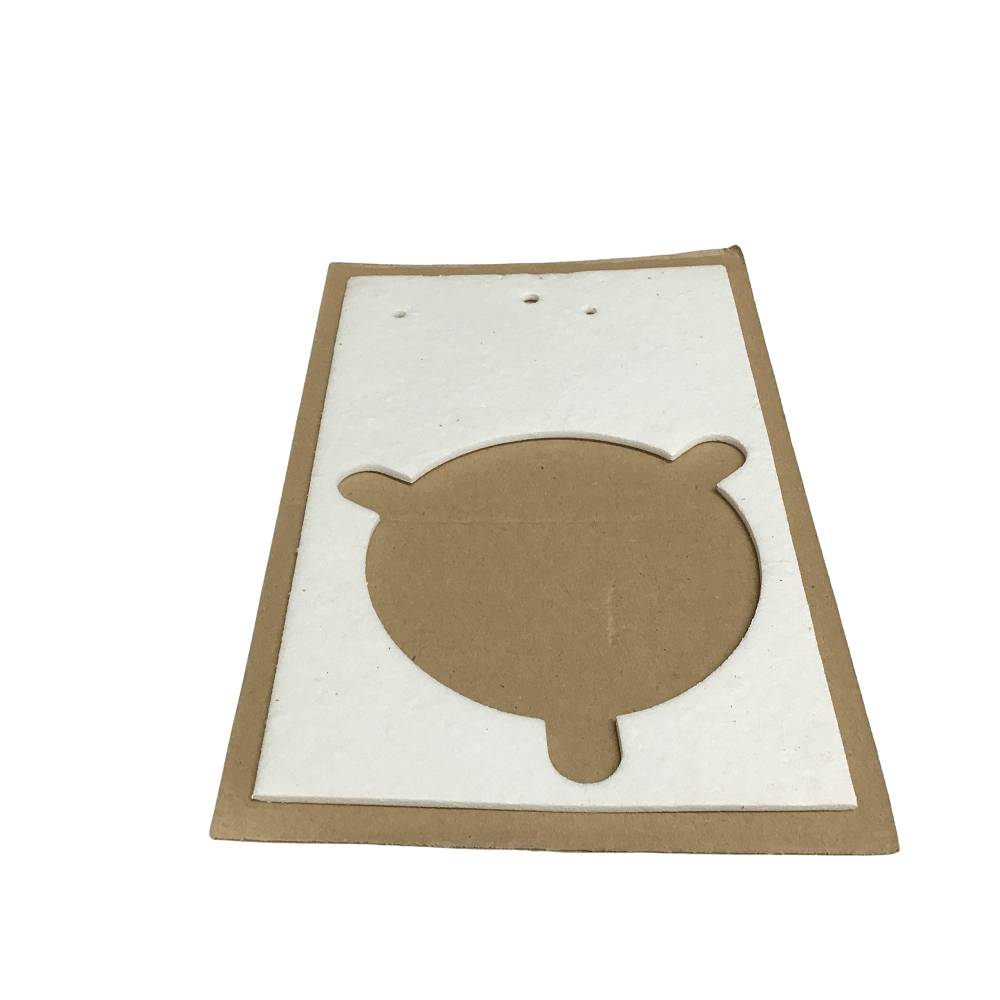

Baxi 231343BAX Gasket - Fan To Flue Hood
At a glance
- Part type: PF2/3 fan to hood gasket
- Also known as 1112254, N6175
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£27.60
£23.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 231343BAX is a fan to hood gasket used on PF2/3 appliances. It sits at the joint between the combustion fan and the hood, sealing that mating face so that flue gases and air follow the intended path through the appliance rather than escaping at the joint. As a soft gasket it also takes up minor surface imperfections between the two castings.
Signs this part needs replacing
- Visible cracking, flattening or hardening of the gasket material at the fan to hood joint
- Soot staining, discolouration or damp marks around the fan and hood mating face
- Combustion readings that drift or fail to settle after servicing
- Whistling, chuffing or a change in fan note under normal running
- Traces of condensate or combustion residue weeping from the joint
Before you order
- Confirm the part number against the appliance data badge and the manufacturer's parts list for your model
- Check the appliance variant, as the PF2/3 designation must match the unit being worked on
- Inspect the fan and hood faces while the joint is open and replace any other seals disturbed during the job
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | PF2/3 Fan to Hood Gasket |
|---|
Compliance
| Manufacturer part number (MPN) | 231343BAX |
|---|---|
| GC number | 364-940 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 231343BAX, 231343BAX, 231343BAX, 1112254, N6175 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI SOLO 2 30 PF | 41-077-71 | 41-077-71 | — | — |
| BAXI SOLO 2 40 PF | 41-077-72 | 41-077-72 | — | — |
| BAXI SOLO 2 50 PF | 41-077-73 | 41-077-73 | — | — |
| BAXI SOLO 2 60 PF | 41-077-74 | 41-077-74 | — | — |
| BAXI SOLO 2 70 PF | 41-077-75 | 41-077-75 | — | — |
| BAXI SOLO 2 80 PF | 41-075-01 | 41-075-01 | — | — |
| BAXI SOLO 3 30 PF | 41-075-04 | 41-075-04 | — | — |
| BAXI SOLO 3 30 PF SYSTEM | 41-075-12 | 41-075-12 | — | — |
| BAXI SOLO 3 30 PFL | 41-075-20 | 41-075-20 | — | — |
| BAXI SOLO 3 30 PFL SYSTEM | 41-075-25 | 41-075-25 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — SOLO 2 30 PF (GC 41-077-71), SOLO 2 40 PF (GC 41-077-72), SOLO 2 50 PF (GC 41-077-73), SOLO 2 60 PF (GC 41-077-74), SOLO 2 70 PF (GC 41-077-75), SOLO 2 80 PF (GC 41-075-01)
manualmanualBAXI appliance manual — SOLO 3 30 PF (GC 41-075-04), SOLO 3 40 PF (GC 41-075-05), SOLO 3 50 PF (GC 41-075-06), SOLO 3 60 PF (GC 41-075-07), SOLO 3 70 PF (GC 41-075-08), SOLO 3 80 PF (GC 41-075-09)
manualmanualBAXI appliance manual — SOLO 3 30 PF SYSTEM (GC 41-075-12), SOLO 3 40 PF SYSTEM (GC 41-075-13), SOLO 3 50 PF SYSTEM (GC 41-075-14)
manualmanualBAXI appliance manual — SOLO 3 30 PFL (GC 41-075-20), SOLO 3 40 PFL (GC 41-075-21), SOLO 3 50 PFL (GC 41-075-22), SOLO 3 60 PFL (GC 41-075-23), SOLO 3 70 PFL (GC 41-075-24), SOLO 3 80 PFL (GC 41-075-30)
manualmanualBAXI appliance manual — SOLO 3 30 PFL SYSTEM (GC 41-075-25), SOLO 3 40 PFL SYSTEM (GC 41-075-26), SOLO 3 50 PFL SYSTEM (GC 41-075-27)
manualNo technical questions yet for this part.
Not sure which part?
Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
