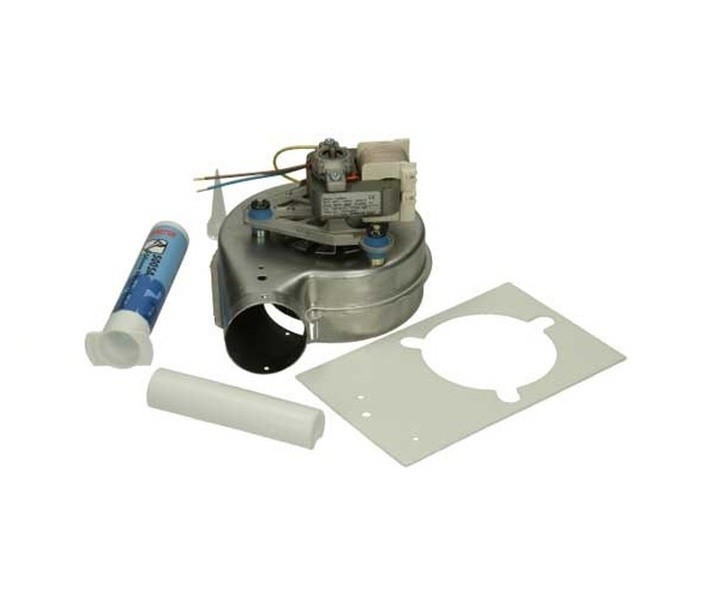

Baxi 229421 Solo 2 Sifan WFFB1701-017 Fan Assembly
At a glance
- Appliance family: 30, 60 and Solo 2 PF
- Also known as 1111882
£256.81
£214.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 229421 is a fan assembly kit manufactured by Baxi for its 30, 60 and Solo 2 PF boiler range. The fan sits in the combustion circuit: it draws air and flue products through the heat exchanger and pushes the exhaust gases out through the flue terminal. Because it runs whenever the boiler fires, the fan is one of the most heavily worked components on the appliance, and a worn bearing or damaged impeller will affect combustion performance rather than just noise levels.
Signs this part needs replacing
- Boiler locks out or fails to ignite, with a fan or air pressure fault code shown
- Grinding, rumbling or squealing noise from the fan area on start-up
- Fan runs intermittently, or does not spin up when the boiler receives a demand
- Repeated lockouts that clear after a reset and return shortly afterwards
- Visible damage, play or contamination on the impeller or fan housing
Before you order
- Confirm the appliance model and GC number from the data badge before ordering, as fan assemblies vary between boiler variants
- Match the part number 229421 against the number on the existing fan or the appliance's parts list
- If the fan mounting gasket or seal is disturbed during removal, check whether a replacement is required for the appliance
Mechanical
| Part type | Fan assembly kit |
|---|---|
| Appliance family | 30, 60 and Solo 2 PF |
Compliance
| Manufacturer part number (MPN) | 229421 |
|---|---|
| GC number | 364-964 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 229421, 229421, 229421, 1111882, 229421 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI SOLO 2 30PF | — | — | — | |
| BAXI BAXI SOLO 2 40PF | — | — | — | |
| BAXI BAXI SOLO 2 50PF | — | — | — | |
| BAXI BAXI SOLO 2 60PF | — | — | — | |
| BAXI BAXI SOLO 2 70PF | — | — | — | |
| BAXI BAXI SOLO 2 80PF | — | — | — | |
| BAXI SOLO 2 30 PF | 41-077-71 | 41-077-71 | — | — |
| BAXI SOLO 2 40 PF | 41-077-72 | 41-077-72 | — | — |
| BAXI SOLO 2 50 PF | 41-077-73 | 41-077-73 | — | — |
| BAXI SOLO 2 60 PF | 41-077-74 | 41-077-74 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
