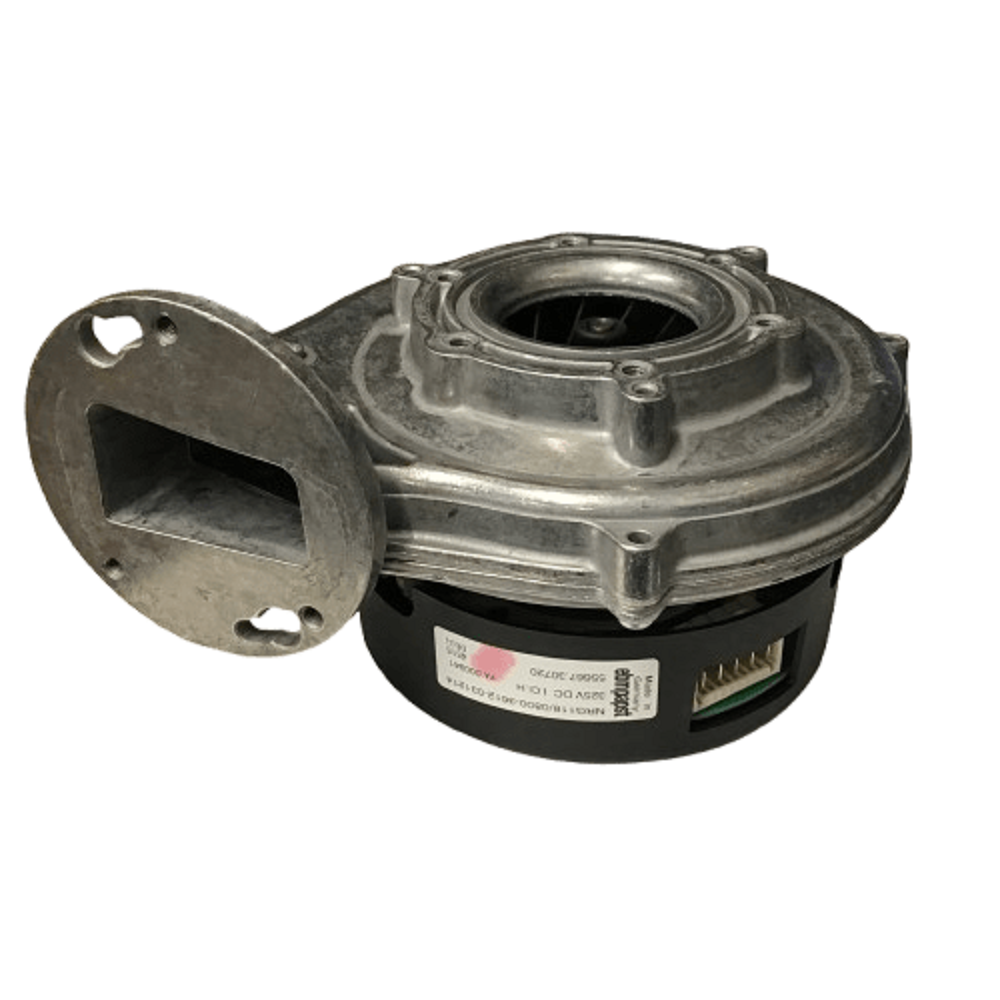

Ariston 60001869 Fan Assembly
At a glance
- Part type: Fan assembly
- Appliance family: Clas HE EVO, E-Combi EVO
- Also known as 1595109, N6801-3
£195.60
£163.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 60001869 is a fan assembly manufactured by Ariston for its Clas HE EVO and E-Combi EVO gas boiler range. The fan draws combustion air into the burner and pushes flue products out through the terminal, so it sits at the centre of the appliance's safe combustion and flue path. It is supplied as a complete assembly rather than as individual motor or impeller components.
Signs this part needs replacing
- The boiler locks out or fails to ignite, with the fan failing to reach its expected speed
- Grinding, whining or rumbling noise from the fan area during start-up or running
- Repeated flame-failure or ignition fault codes traced to the fan or air pressure switch circuit
- Visible damage, stiffness or play in the fan impeller or motor bearings
- Overheating or intermittent shutdown where flue gas clearance is reduced by a failing fan
Before you order
- Confirm the boiler model and GC number against the appliance data badge, as the same model name can cover several build variants
- Check the existing fan assembly part number on the appliance before ordering, particularly where an earlier number may have been fitted
- Inspect the fan mounting gasket and sealing washers, and renew them if they are compressed or perished
Mechanical
| Part type | Fan assembly |
|---|---|
| Appliance family | Clas HE EVO, E-Combi EVO |
Compliance
| Manufacturer part number (MPN) | 60001869 |
|---|---|
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 60001869, 60001869, 60001869, 1595109, 60001869, N6801-3 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON CLAS HE EVO 24 UK | 47-116-73 | 47-116-73 | — | — |
| ARISTON CLAS HE EVO 30 UK | 47-116-74 | 47-116-74 | — | — |
| ARISTON CLAS HE EVO 38 UK | 47-116-75 | 47-116-75 | — | — |
| ARISTON CLAS HE SYSTEM EVO 18 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 18 UK | 41-116-41 | 41-116-41 | — | — |
| ARISTON CLAS HE SYSTEM EVO 24 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 24 UK | 41-116-42 | 41-116-42 | — | — |
| ARISTON CLAS HE SYSTEM EVO 30 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 30 UK | 41-116-43 | 41-116-43 | — | — |
| ARISTON CLAS PREMIUM EVO 24 | — | — | — |
Showing 10 of 37 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — CLAS HE EVO 24 UK (GC 47-116-73), CLAS HE EVO 30 UK (GC 47-116-74), CLAS HE EVO 38 UK (GC 47-116-75), CLAS HE SYSTEM EVO 18 UK (GC 41-116-41), CLAS HE SYSTEM EVO 24 UK (GC 41-116-42), CLAS HE SYSTEM EVO 30 UK (GC 41-116-43)
manualmanualARISTON appliance manual — E-COMBI EVO 24 FF UK (GC 47-116-68), E-COMBI EVO 30 FF UK (GC 47-116-69), E-COMBI EVO 38 FF UK (GC 47-116-70), E-SYSTEM EVO 24 UK (GC 41-116-39), E-SYSTEM EVO 30 UK (GC 41-116-40)
manualNo technical questions yet for this part.
Not sure which part?
Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
